Pictures from the PROTEIN TRANSLATION WEDDING are out! 🤗They say a picture tells 1000 words. Well, if codons are mRNA “words” you’d need less than 1/2 a picture per average protein. I’m gonna take a few more to describe the process in which proteins are made, but today’s post I’m gonna keep wordiness to a minimum (by the bumbling biochemist’s standards that is) because over the weekend I had some time to make some graphics to help speak the words for me. If you want more text details, I assure you, you can find plenty in the past posts I link to!

TRANSLATION is the process of putting together proteins one piece at a time. The pieces are called AMINO ACIDS. There are 20 (common) ones and they link together through peptide bond “marriages” carried out in a ribosomal “chapel.” The marriage order is specified by the messenger RNA (mRNA) which is a “multi-multi-use” but “disposable” RNA copy of the permanent DNA gene.

RNA (ribonucleic acid) & DNA (deoxyribonucleic acid) are both written in the “nucleic acid” language (did the name give it away?), where the letters are nucleotides (sugar+phosphate+nucleobase(1 of 5 unique options)). RNA & DNA are really similar (they just have a different sugar and 1 of the nucleobases is slightly different). Since they’re both in the same “language” we call the DNA->RNA copying process TRANSCRIPTION. But when you go from RNA to protein you’re changing into the protein language which has amino acid letters, so we call this process TRANSLATION, and it reminds me of a (very polygamous) marriage.

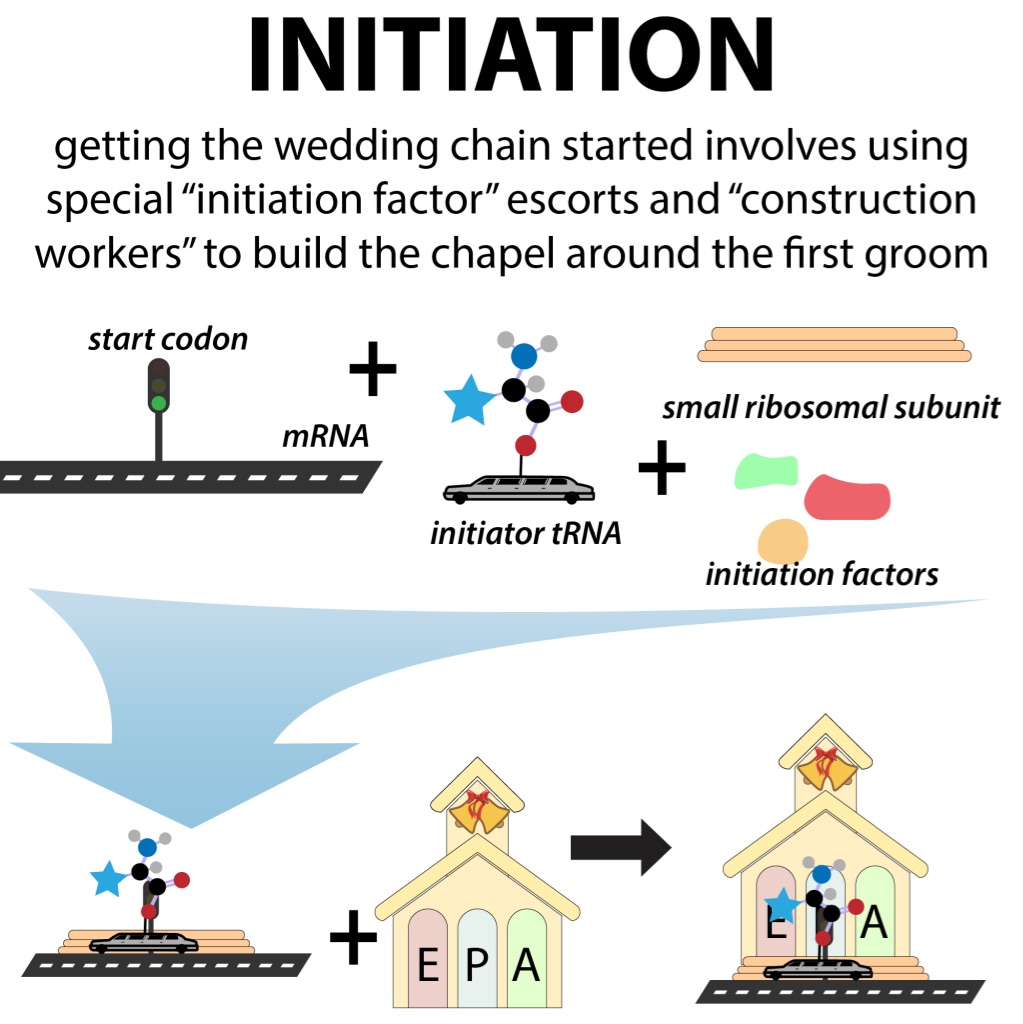

The wedding party gets started when the ribosomal chapel assembles itself (with the help of initiation factor “construction workers” around the first bride (which is always a methionine (Met) because its codon also serves as a start signal. more on translational initiation:

Amino acids are taken to the chapel by transfer RNAs (tRNAs) which serve as “limos.” Each tRNA will only accept one type of amino acid (but there are lots of identical copies of all of these things, so there’s hopefully plenty to go around). Each amino acid has at least one tRNA just for itself and it’s important that the right amino acids get in the right limo because the ribosomal “priest” won’t be able to tell what amino acid’s in the limo, just what limo it is (by “reading” the limo’s “license plate” – a 3 RNA letter word called an anticodon that complements a codon on the mRNA. more on this genetic code:

It’s really important that there’s no identity theft allowed! Your cells have to pay for this added layer of security in the form of energy money. In AMINO ACID ACTIVATION, an AMP molecule is added onto the amino acid from ATP. Then, in the tRNA CHARGING step, the amino acid binds to the matching tRNA (the one whose anticodon “license plate” matches the codon “reserved parking for…” sign in the mRNA. The AMP is released in the process, leaving you with aminoacylated tRNA (aa-tRNA). more:

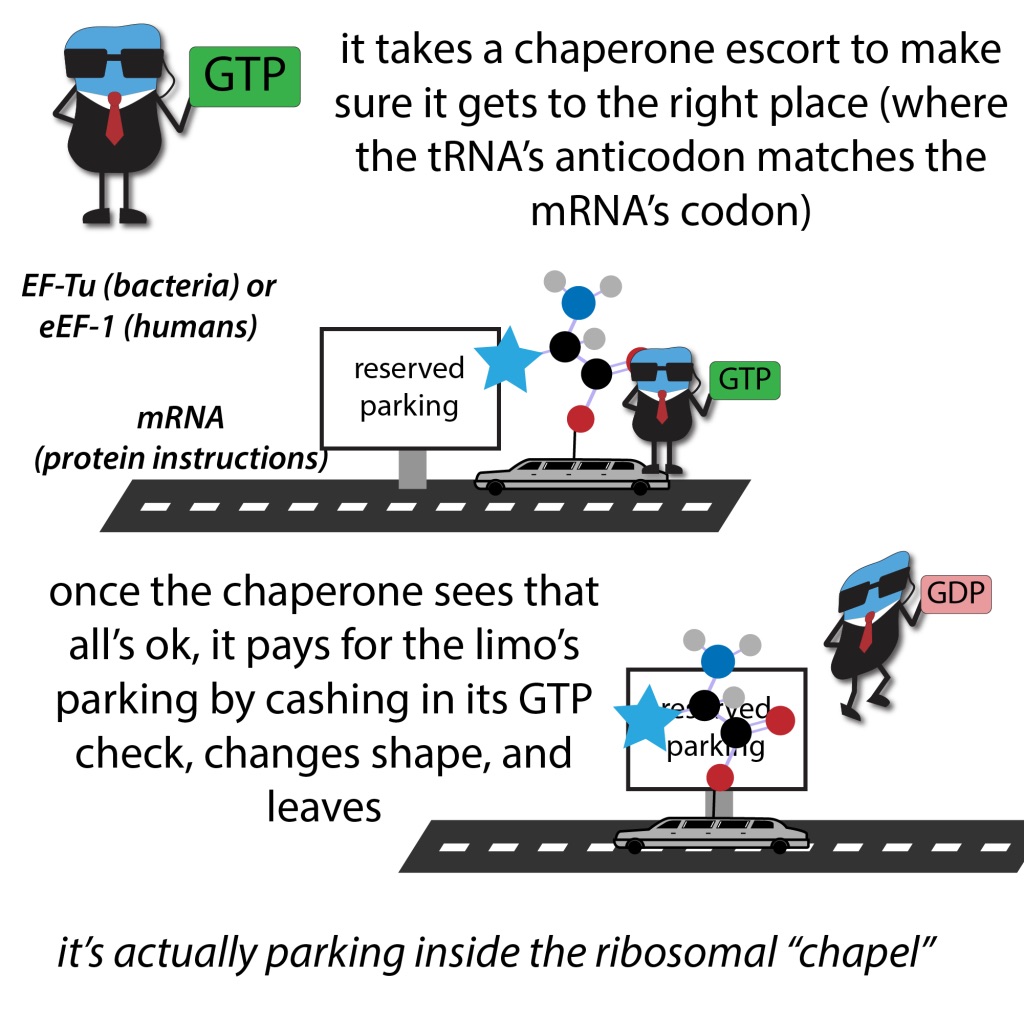

Time to start heading to the chapel. But you’ll want to take a “security guard” to make sure you don’t go to the wrong place. ELONGATION FACTORS (EF-G in bacteria and EF-1 in humans) travel with the aa-tRNA and don’t leave until they make sure that the codon and anticodon match (note that it’s the anticodon that matters here, not the actual amino acid, which is why that precaution during the charging step is important).

Once the EF sees all’s good, it “pays for the aa-tRNA’s parking” by hydrolyzing (using water to split) GTP into GDP (same concept as usage of ATP for energy, just a different nucleobase). Then it “splits” -> falls off

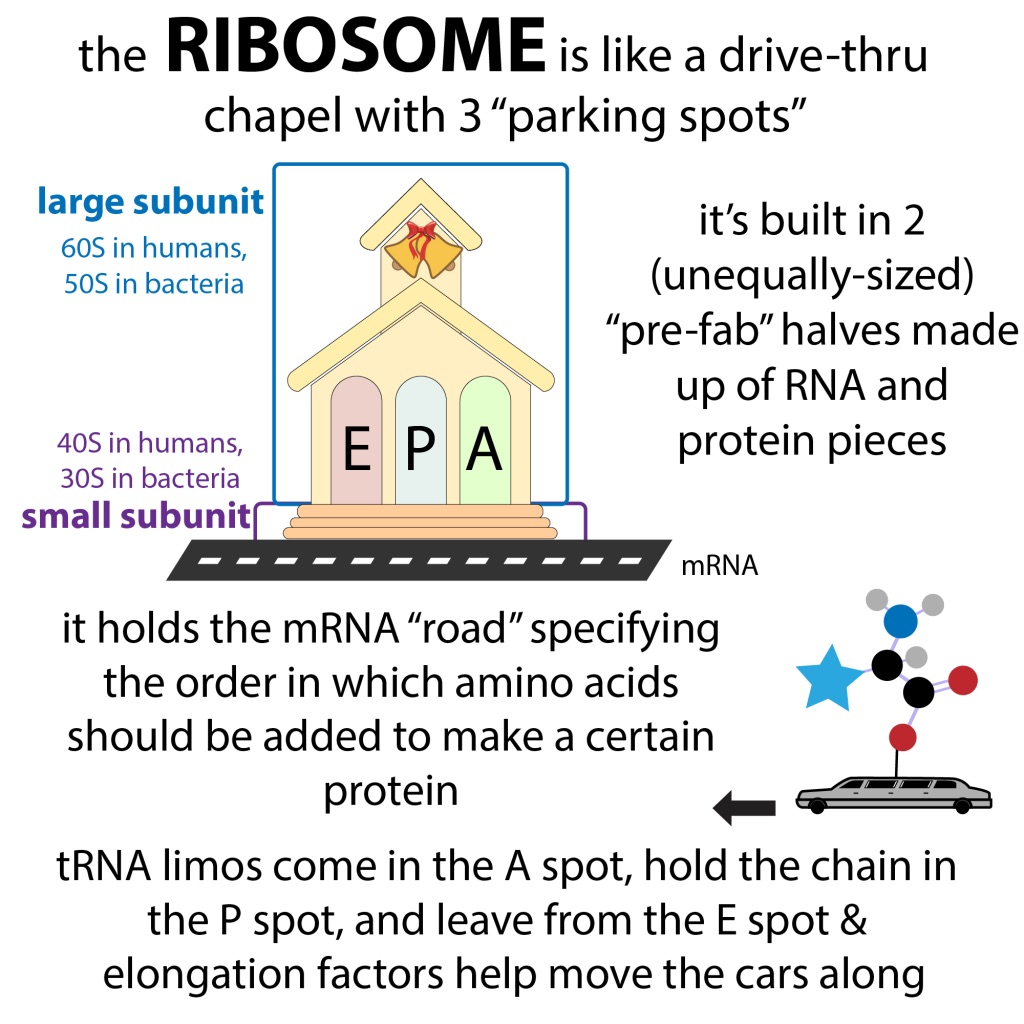

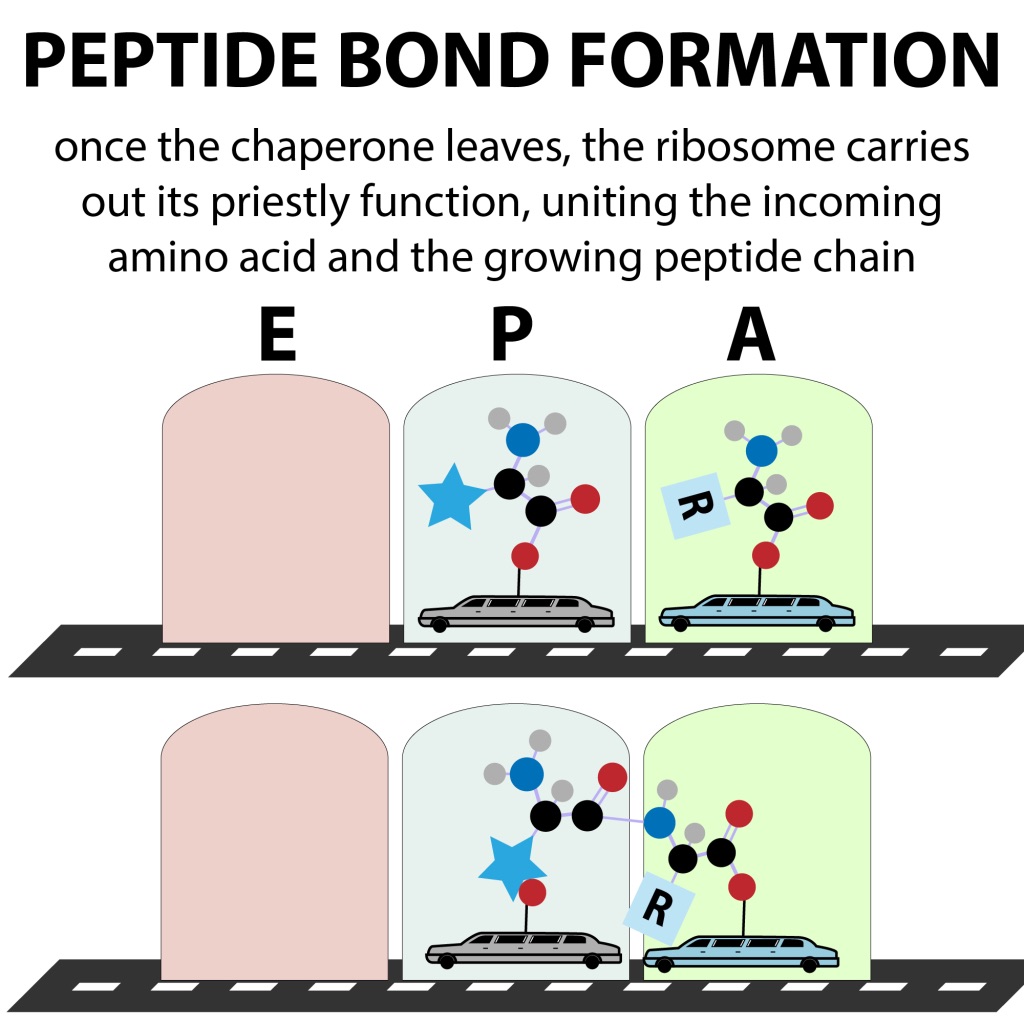

The EF drops off the incoming tRNA in the ribosome’s “A” spot (1 of 3 parking spots that fit in the ribosome at a time). The ribosome then carries out its priestly functions, uniting the new amino acid with the growing peptide chain through a PEPTIDE BOND union. The growing strand gets transferred to the new tRNA, so you have an awkward transition stage where the peptide’s still mostly in the P spot but it’s attached to a tRNA that’s in the A spot. Another elongation factor, (EF-Tu in bacteria or EF-2 in humans) comes in and moves things along, spending GTP to push the old limo (still attached to its mRNA parking spot) into the E spot (where it falls off), the limo with the growing chain into the P spot, and bringing a new codon into the A spot for the next amino acid to be added.

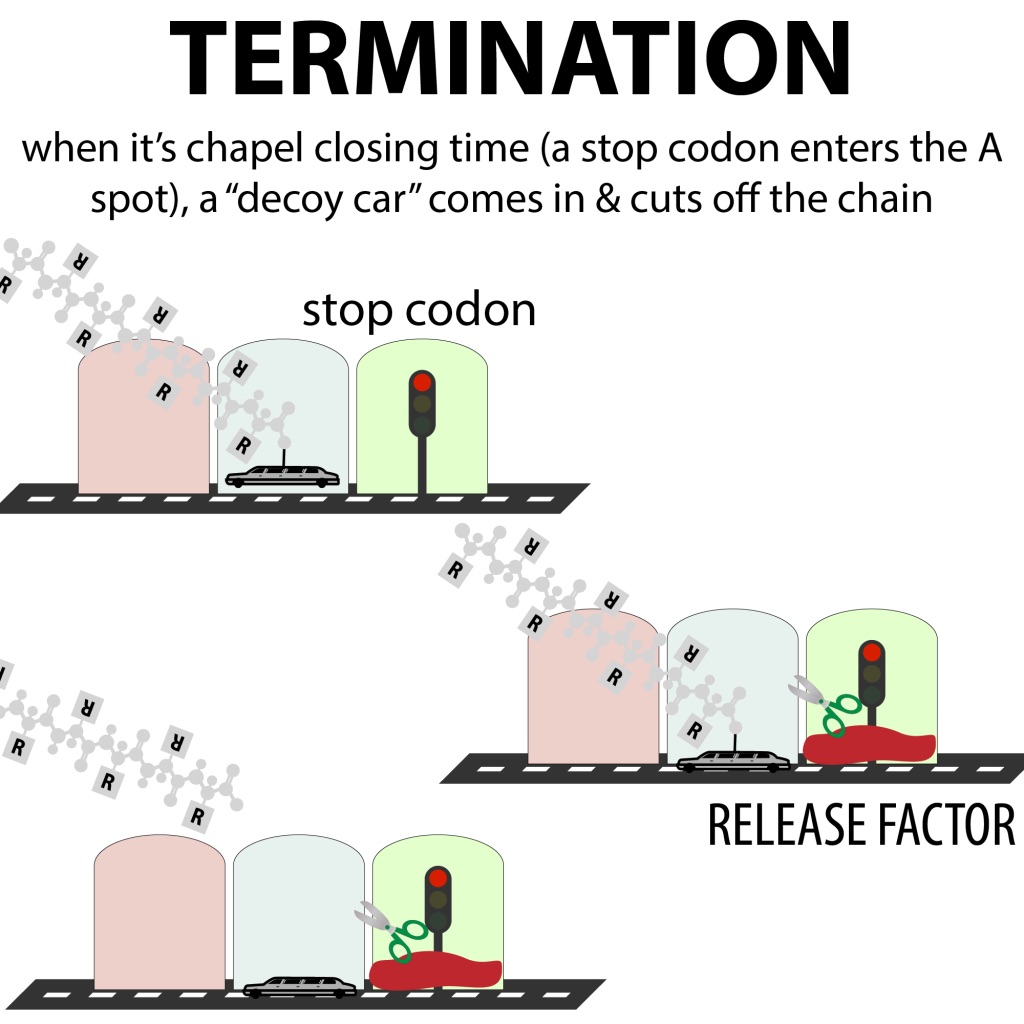

Something special happens when a “stop codon” shows up there. This signals the end of the chain. Instead of a tRNA binding it, a protein TERMINATION FACTOR binds and cleaves the chain off. more on translational termination:

The superpolygamous protein can then make itself comfortable by folding into the optimal conformation so that the amino acids that like each other are kept together, ones that hate each other are kept apart, etc. more here:

I am a visual learner and I love when I can get my wacky ideas out in picture form. I hope the pictures help some of you too. And that I haven’t made things to abstract… What I really need to find is an animator to team up with for one of those science communication video challenges…
