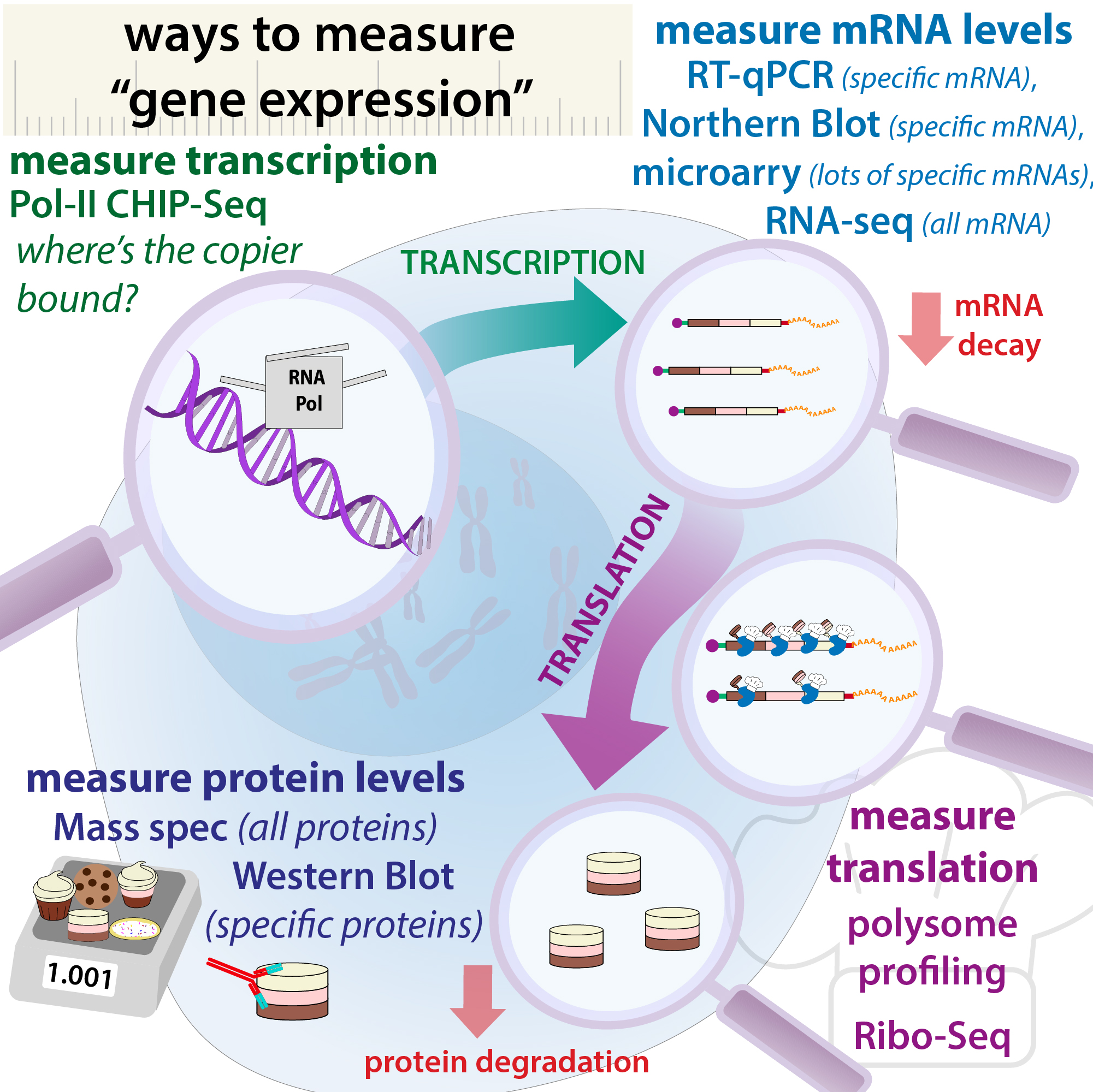

Do you ever hear scientists talking about genes being “expressed” and wonder what the heck they’re talking about? You’re not alone – even scientists often want clarification because “expression” can mean multiple things and can be measured multiple ways to tell you about different accepts of the “expression” and post-expression process. Are we talking about protein recipes being copied in RNA from their DNA gene (transcription)? Protein being made from those copies (translation)? Do you take into account how well those proteins survive (proteasomal degradation)? Here’s an overview of some of the techniques that are commonly used to measure those various aspects. 



I abbreviated the text of a past post for today, so you can find that more detailed version of the text in this past post: http://bit.ly/measuringexpression   

and more details on specific topics on the techniques page of my blog: https://thebumblingbiochemist.com/lets-talk-science/techniques/

Proteins are cellular “workers” made up of amino acid building blocks. I like to think of them as “baked goods” like cookies & cakes. Cells are constantly dealing w/different demands, to which they have to be able to adapt their supply to meet. There are many different ways in which they do this & the further down the protein production pipeline, the more quickly effects can be seen, but the less efficient the process (like turning off a faucet vs cleaning up the mess). The original recipes are written in DNA in the form of genes, bound together into “cookbook volumes” called chromosomes housed in a membrane-bound room in your cells called the nucleus. To make a protein, the cells make an messenger RNA (mRNA) copy of the gene-encoded recipe in a process called transcription, then (if it passes the security check) the mRNA recipe gets sent out into the general part of the cell (cytoplasm) where where “chefs” called ribosomes turn it into a protein in a “baking” process called translation. https://bit.ly/translationtimestwo   

Each cell has the instructions for making every protein you could ever need. But you don’t need each actual protein all the time in each cell (e.g. a restaurant doesn’t need to make ravioli at breakfast time). So the cells regulate what proteins get made when, how many copies get made, and how long those proteins stick around. Going back to our bakery analogy, and talking in terms of cupcakes, the bakery can regulate  

1. how many copies of the cupcake recipe are made and delivered to the chefs (transcriptional regulation) 

2. how long those recipe copies are available to the chefs (post-transcriptional regulation) 

3. how many cupcakes are made from those recipe copies (translational regulation) 

4. how long those cupcakes stick around & whether they have cherries or mold added (post-translational regulation) 

The bakery can do this for each recipe, separately controlling the amounts of ravioli, cupcakes, cookies, etc. And your cells can do this for each protein recipe.  

When people refer to “expression,” what they usually really care about is a certain protein being present in a cell (does the bakery have cupcakes when you arrive). So, for example, if someone says that a certain receptor isn’t expressed in some cell type, that cell type doesn’t have that receptor present and therefore won’t respond to the corresponding ligand (binding partner). Therefore, one way to measure “expression” is to measure the amount of that protein present, which you can do using methods including western blotting and mass spectrometry. 

With either of these techniques, the amount of protein present is also going to depend on how much the protein is being degraded, so measuring the current amount of protein present is only a proxy for the actual protein “expression” step.  

what you’d see: 

Protein expressed – ↑ protein levels….. expressed protein degraded – ↓ protein levels 

The 2 processes might even cancel each other out, so you wouldn’t even know that a protein was technically being “expressed” if you just looked at protein levels  

What if the protein’s being made, it’s just not lasting long enough to detect? Unlike cakes, which are single-use, proteins usually are designed to be used multiple times. They’re used rather than consumed. But they can get “thrown out” if desired. Unwanted proteins are tagged with a chain of a little protein called ubiquitin, which a protein version of a paper shredder called the proteasome shreds so you can recycle the parts. https://bit.ly/ubiquitinylation  

To test for degradation, you can do your western blot and/or mass spec experiment with and without a proteasome inhibitor. If your protein is normally getting shredded lots, you should see a much stronger band when you add the inhibitor. Alternatively or additionally, you can test for ubiquitinylation (which you can do using a few methods, including immunoprecipitating (IP-ing) your protein using a protein-specific antibody to get it to stick to antibody-coated beads, and then doing a western blot with anti-ubiquitin antibodies). If you see that the protein’s being ubiquitinylated, its levels are likely being regulated post-translationally.  

So, we’ve seen how to measure current levels, and degradation, but if you really want to know about *protein expression,* there are several techniques you can use to actually measure the protein-making process (translation) as it’s happening, before degradation can occur. These methods include polysome profiling, where you look at how many ribosomes are on that proteins’ mRNA – this is basically asking, how many protein chefs are making protein from each recipe copy? These chefs are protein/RNA complexes called ribosomes, and they travel along mRNAs, following the mRNA’s instructions to piece together amino acids (protein letters) to form the corresponding protein.  A single ribosome on an mRNA is called a monosome. When multiple ribosomes are on an mRNA, we call it a polysome, and it’s indicative of protein being made. You can measure it by taking mRNAs from a cell and spinning them in a sugar gradient – the mRNAs will separate based on how heavy they are, and the further it will sink. The more ribosomes on an mRNA, the heavier it will be and therefore you can tell apart non- or poorly-expressed mRNAs and highly-expressed mRNAs. This technique is called polysome profiling https://bit.ly/polysomeprofiling  

So, how much protein gets made depends on how many ribosomes are on each mRNA. But you can only stuff a certain number of ribosomes on an mRNA at a time before you have the biochemical equivalent of “too many cooks in the kitchen.” So, another way cells can boost the amount of protein being made is by increasing the number of copies of that protein’s recipe (messenger RNA, aka mRNA) that are present in the cell, i.e. increasing the expression of the *gene*. The amount of such mRNA is going to depend on how much of that mRNA is made (in a process called transcription) and how quickly/to what extent that mRNA is degraded.  

Transcription is regulated in large part by transcription factors, which are proteins that bind to the region in front of genes and influence (either positively or negatively) whether that gene gets transcribed. Different genes have binding sites for multiple different transcription factors. Some genes use some of the same transcription factors, so the same proteins can regulate multiple related genes.  

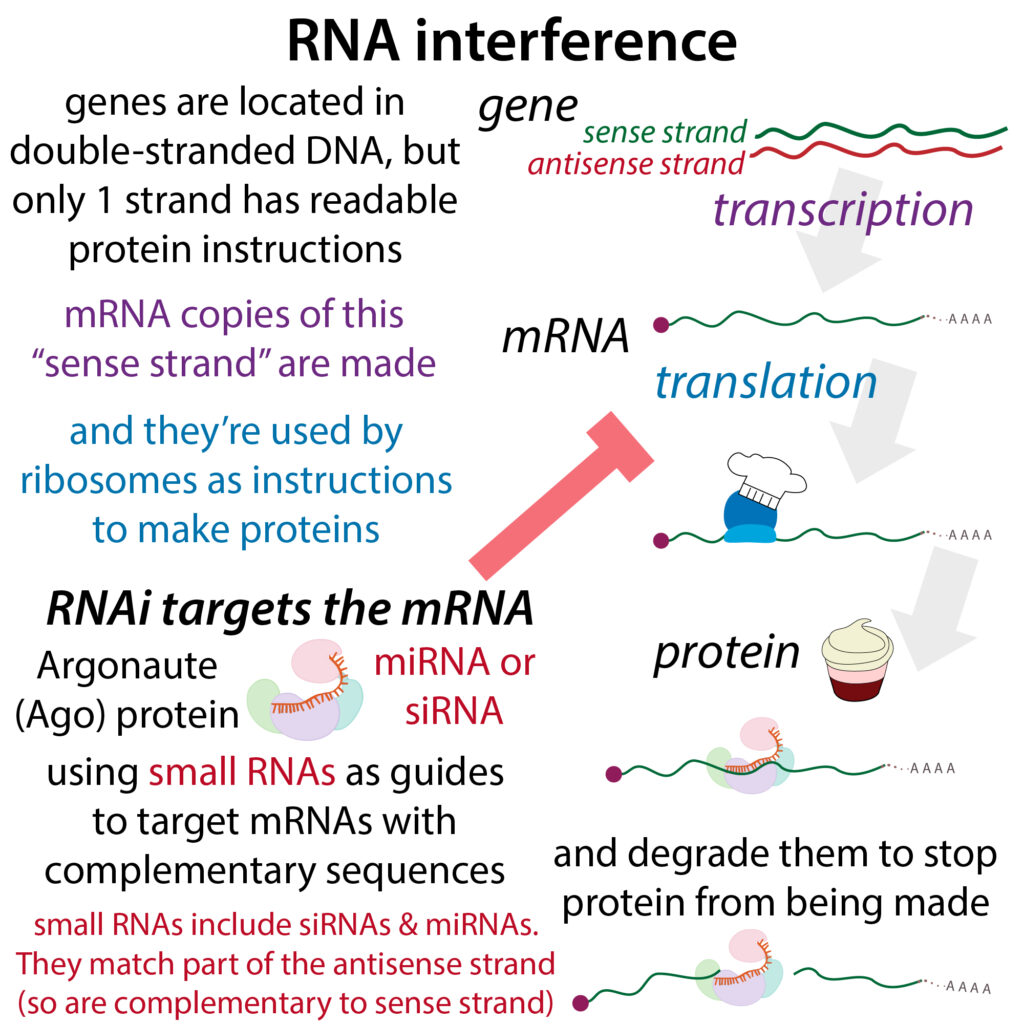

Post-transcriptionally, mRNAs can be regulated by mechanisms including my favorite, RNA interference (RNAi)/micro-RNA mediated regulation. http://bit.ly/microRNARNAi 

We can measure how much mRNA is present at any given time using a northern blot or RT-qPCR (which allows us to measure levels of specific mRNAs) and/or mRNA-seq (which looks at levels of “all” mRNAs). 

But, with any of these methods, once again, we have the problem that by using these sort of “steady-state” measurement we can’t tease apart the effects of transcription vs post-transcriptional decay. For example, if you find that a mRNA is present in low levels that could mean  

1. the mRNA’s gene isn’t being transcribed much, so you’re not making much of that mRNA 

2. the mRNA is getting made, but quickly degraded 

3. a combination of the 2 

Thankfully, there are ways you can figure out which scenario you’re dealing with (but they’ll take extra work so most people don’t do them unless they really need to know.  

To test how many mRNA copies are being made you can use a technique called Pol II CHIP-seq. Pol II is the RNA polymerase that acts as a sort of DNA to RNA Xerox machine, making (pre)mRNA recipe copies from genes (these copies then go through some processing to form mature mRNAs, but I’m not going to go into that here). If you see a lot of Pol II hanging out at a gene, there’s a pretty good chance that gene is getting transcribed. One way to be able to “see it” is to freeze Pol II in place, which you can do by cross-linking it to the DNA it’s bound to (cross-linking is where you use UV light and/or chemicals to get strong bonds to form between molecules that are only transiently bound). Then you isolate the Pol II using antibodies that are specific to it (this is where you get the name CHromatin ImmunoPrecipitationuse), use nucleases (DNA/RNA chewers) to cut away “excess” DNA and then sequence the DNA that the protein was bound to. This gives you a sense of the recipe’s popularity in terms of transcription. 

Note: There’s a similar method called Ribo-Seq that does the same sort of thing but with ribosomes so you can see what proteins are actively being translated. https://bit.ly/ribosomefootprinting  

Bottom line, “expression” can mean multiple things. Strictest-definition-wise, you can talk about gene expression in reference to transcription and protein expression in reference to translation. But you have to remember that you’re also dealing with decay of the transcribed mRNAs and decay of the translated proteins. So the actual amount of “product” you have is the sum of multiple processes and levels of regulation. And each technique I’ve told you about gives you a different glimpse at aspect(s) of those processes, but nothing can give you the full picture in one go.  

more on topics mentioned (& others) #365DaysOfScience All (with topics listed) 👉 http://bit.ly/2OllAB0⠀
